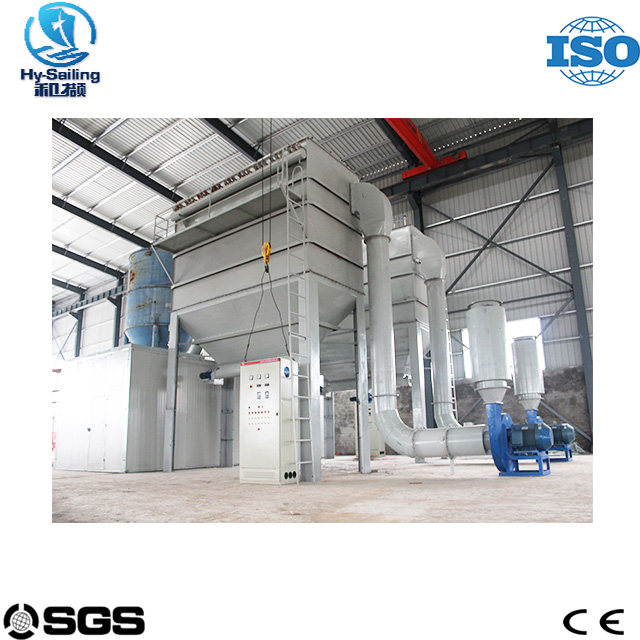

High Speed Ring Roller Grinding Mill (Pulverizer) for Micro Powder

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
HS-GR Grinding machine is mainly used for grinding hardness is not more than 5 levels of brittle material, such as coarse whiting, calcite, marble, dolomite, barite, phosphate rock, petroleum coke, white carbon black, brucite, hydrogen aluminium hydride, titanium dioxide, kaolin, wollastonite, rare earth, graphite, mica and etc.
  • HS-GR

  • Hy-Sailing

Availability:
Quantity:

  1. Application

Hy-Sailing Grinding Mill is mainly used for grinding hardness is not more than 5 levels of brittle material, such as coarse whiting, calcite, marble, dolomite, barite, phosphate rock, petroleum coke, white carbon black, brucite, hydrogen aluminium hydride, titanium dioxide, kaolin, wollastonite, rare earth, graphite, mica and etc.

application




Specification

HS-GR-89

HS-GR-189

HS-GR-219

Grinding dia(mm)

840

930

960

RPMr/min

Rotary wheel

<990

<990

<990

Classifier

<1500

<1500

<1500

Powerkw

Main motor

75

132

132

Classifier

22

22

30

Blower motor

55

75

75

Total

152kw

237kw

237kw

outputkg/h

500~3000

1500~3500

1500~4300

Remark

Datas by the industry of Calcite( feeding size 10mm,Moisture5%)
  Different minerals different datas
Particle   size was analyzed by OMEC inc and Malvern LTD.


Specification

HS-GR-289

HS-GR-309

Grinding dia(mm)

1080

1080

RPMr/min

Rotary wheel

<990

<990

Classifier

<1500

<1500

Powerkw

Main motor

160

160

Classifier

22

30

Blower motor

90

90

Total

280kw

280kw

outputkg/h

4500~12000

1500~6000

Remark

Datas by the industry of Calcite( feeding size 10mm,Moisture5%)
  Different minerals different datas
Particle   size was analyzed by OMEC inc and Malvern Ltd.




2. Advantages

1) Exclusive patent, Structure innovation

Compared with domestic similar grinding equipment, Hy-Sailing grinding mill has lots of technological innovation, such as crushing chamber adopts the composite structure, the transmission shaft adopts rhombus structure etc. So this machine no only has lager crushing ability but also less maintenance and low use cost.

2) High crushing ratio, High energy efficiency

For example,calcium carbonate with particle size smaller than 10mm,one-time processing to less than 10 µm (97%) ,the fineness powder content is high and the specific surface area of powder is big.

3) Stable performance and Good particle size

Hy-Sailing mill is the best choose for dry process production non-metallic ore powder. Main machine with built-in classifier, classification wheel mechanism is unique, grading effect is good, powder particles are concentrated, no large particles pollution.

4) Small abrasion and Good shock resistance

Grinding wheel is the made of special wear-resistant alloy steel, so the service life is improved 2 ~ 3 times. The main base made if the excellent forging steel, so it must be of high structural strength and good shock absorbency.
