Ultra Fine-Impact Mill (Impact Pulverizer)-H Type

Share to:

HS-IMG-H Impact pulverizer is According to the mineralogical properties of wollastonite, the mechanical airflow pulverization is given priority to with shear rolling force is, be conducive to the protection of the type of crystal silicon ash, good length to diameter ratio, high sedimentation value, adjustable fineness of 200 ~ 1250 mesh.The practice proved that this product is used in the production of ordinary or ultra fine silicon ash powder.

  • HS-IMG-H
  • Hy-Sailing
Quantity:

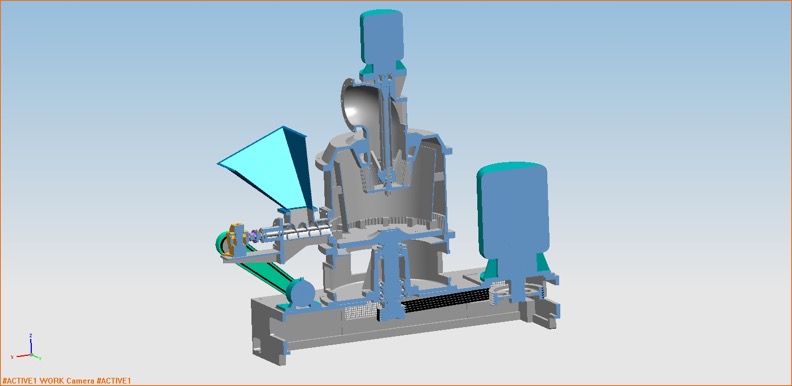

A section chart


IMPACT APPLICATION FIELDApplication

Non-metallic mineral industry

Nano calcium, calcium ash, wollastonite, bentonite (concave) soil, brucite, aluminum hydroxide, kaolin, phosphate rock, talcum powder, tungsten, 108 glaze, mica, graphite, rare earth, phosphate, specularite...



Chemical industry

Petroleum coke, white carbon black, AC foaming agent, titanium dioxide, zinc stearate, polyvinyl alcohol, iron oxide red, melamine, activated carbon, carbon black, aluminum hydroxide, alumina, monoammonium phosphate, lead lead sulfate, boric acid, alkaline zinc carbonate, lithopone, compound fertilizers, industrial salt, silica gel, cobalt oxide, camphor powder...



 Food industry

Starch, sugar, AGAR, soybean meal, Chinese herbal medicine, cocoa, dried vegetables leaf...




Specification

HS-IMG-700G

HS-IMG-1000G

Grinding dia(mm)

700

1000

RPM

(r/min)

Rotary wheel

<3000

<3000

Classifier

<2900

<2900

Power

(kw)





Main motor

37

90

Classifier

7.5

30

Blower motor

18.5

55

Total

63

175

Size

(m)

Height

2.6

3.15

Area

8.5*3

11.2*3.5

Output(kg/h)

500~800

600~1500

Remark

Datas by the relative industry.



Advantages

① Rouble-free, maintenance free: Can be seen from the picture, the hammer is on hammer plate through screws.Therefore, relative to the Raymond mill, crushing cavity without oil seal bearing, therefore, in addition to the normal wear need teardown replacement parts, do not need other maintenance.

② Without over-smashing: you can see from the above series of figure, hammer plate is rotating, gear ring is static, that is to say: hammer and ring gear (also called guard) without direct contact.Result: the shattering of the material is through powder and collision of hammer head, powder and gear ring of the collision, collision between powders and powders to complete, so get crush powder, and "hard" because hardness will not be a one-off pieces.That is to say, the model was not produced pieces.Is not produced, powder and hard point the premise of fully separated.

③ Durable:Can be seen from the graph: hammer hit the surface with a layer of hard alloy welding on the piece, ring gear is to use high chromium casting material;Can be seen from the figure 4: hammer plate surface using a layer of wear-resistant welding layer of protection.Result: very wear-resistant parts.Add powder and hard point can fully separated without too much damage parts, so: the equipment is very durable, normal parts, can use more than one year.

④ Good Capability:Can be seen from the diagram, the crushing cavity diameter of 1 meter, because of the crushing cavity is bigger, so high grinding efficiency, high yield, the yield can be up to four tons.

⑤ Fine particle sizeCan be seen from the graph: classifier USES is wide blade vertical hierarchical structure, wide blade gap big guarantee not sticky powder;Vertical grading guarantee the size distribution of powder more concentrated than horizontal classifier.And because crushing ability, so fine powder containing high.In a word, Samhar CJM-A special impact mill in the domestic many factory in use process to prove: the models can help factory improve the quality of powder, reduce the production cost of unique advantages, has been many years industrial practice, the complete set of mature and reliable system.
